High Performance CNC 1600mm Wire Mesh Weaving Loom

Wire Mesh Weaving Loom Product Introduction

Our fully digital 1600 mm wire-mesh weaving platform is offered in two configurations: B-Type (Light-Duty) and D-Type (Heavy-/Medium-Duty). Both use an industrial PLC system with servo motors to precisely coordinate warp let-off and take-up, while closed-loop tension control keeps mesh geometry stable and repeatable.
Typical capability ranges (project-dependent): the D-Type accurately weaves plain weaves ~10–100 mesh/inch, and the B-Type handles plain weaves ~30–500 mesh/inch. With speeds up to 120 rpm, digital setting of mesh count and tension makes operation intuitive and consistent. A continuous take-up (uninterrupted doffing) function and digital length display reduce auxiliary time and lift overall throughput.

 Wire Mesh Weaving Loom Overview

This model is a high-performance, high-precision CNC loom purpose-built for the precision metal mesh industry. At its core is a fully digital programmable control system driving key motions (take-up, warp let-off, beat-up) with servo accuracy and automatic tension regulation, delivering flat surfaces, clean selvedges, and stable density on extended runs.

Wire Mesh Weaving Loom Key Features & Advantages

• Precision weaving – Closed-loop tension + servo synchronization maintain tight aperture/density tolerances for accurate, stable output.

• High efficiency – Up to 120 rpm, improving productive throughput by over 70% versus conventional setups (model/mesh dependent).

• User-friendly – Mesh count & tension are digitally set and stored via a touch HMI; guided windows enable fast, repeatable changeovers.

• Versatility – Supports Plain, Twill, and Dutch weave recipes across light- and heavy-duty configurations.

• Productivity enablers – Continuous take-up (uninterrupted doffing) and digital length counter minimize non-productive time and raise OEE.

• Reliability & durability – Long-run stability with options such as a bearing-type crankshaft, reinforced frame, and service-friendly access.

Wire Mesh Weaving Loom Applications

Produces high-quality metal mesh for demanding filtration, screening, and separation needs across multiple industries:

• Petroleum & Chemical – Filters, screens, separators

• Aerospace – High-temperature filtration, shielding meshes, safety guards

• Mechanical Manufacturing – Precision filters, vibrating screens

• Automotive – Catalyst support meshes, filter elements

• Electronics – EMI/RFI shielding, protective guards

Wire Mesh Weaving Loom Products Parameter

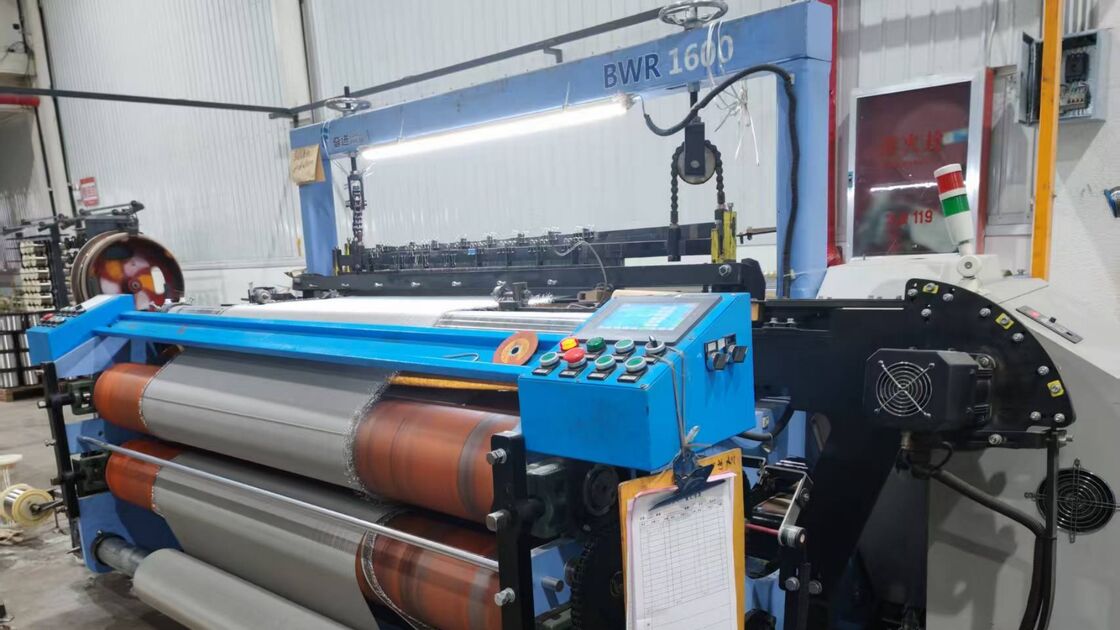

6. Detailed Images:
