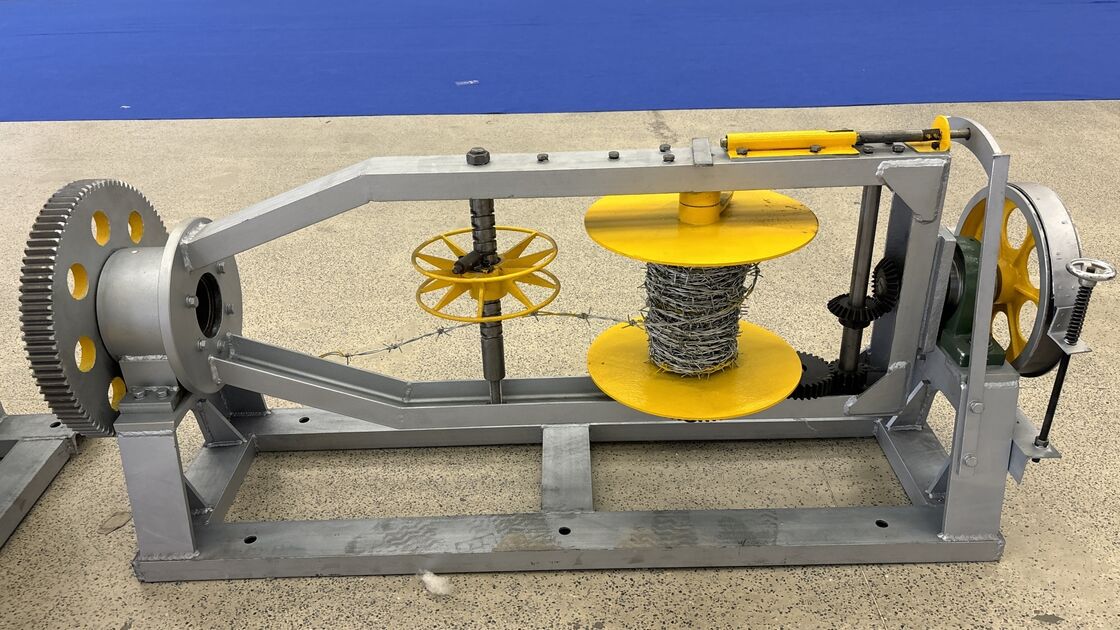

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

TypeA

Motor power(kw)

3

Voltage(V)

380

Boudary dimension(mm)

Main :2000*1200*1400

Auxiliary:1700*500*800

Weight(kg)

1000

Main wire diameter(mm)

1.6-3.0

Length of spicules(mm)

1.6-3.0

Tensile strength of wire mesh(N/mm²)

400—600

Distance between thorns(inch)

3’(7.5cm)

4’(10cm)

5’(12.5cm)

6’(15cm)

Output(m/h)

740

990

1235

1485

Output(kg/h)

120(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.)

TypeB

CS-B Single-Thread Machine

Motor power (kw)

2.2

Voltage(V)

380

boundary dimention(mm)

2700*1100*1300

Weight(kg)

750

Stocking diameter(mm)

1.3-3.2

Length of spicules(mm)

1.3-3.2

Tensile strength of wire mesh(N/mm²)

400—600

Spacing between thorns(inch)

3’(7.5cm)

4’(10cm)

5’(12.5cm)

6’(15cm)

Output(m/h)

540

720

900

1080

Output(kg/h)

60(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.)

TypeC

Motor power(kw)

2.2

Voltage(V)

380

Boundary dimension(mm)

3000*1100*1300

Weight (kg)

750

Stocking diameter(mm)

1.3-3.0

Length of spicules(mm)

1.3-3.0

Tensile strength of wire mesh(N/mm²)

1100—1200(1.6 - 1.8 mm Ø)

800—900(1.8—2.6mmØ)

400—500(2.7—2.8mmØ)

Spacing between thorns(inch)

4’(10cm)

5’(12.5cm)

Output(m/h)

720

900

Output(kg/h)

30(Main wire 1.6mm, barbed wire 1.6mm as an example)

Quantity

Standard silk winding frame

100KG

4

2

Shift fork

2

Feeding rod

1

Groove cutter

2

Counter

1
