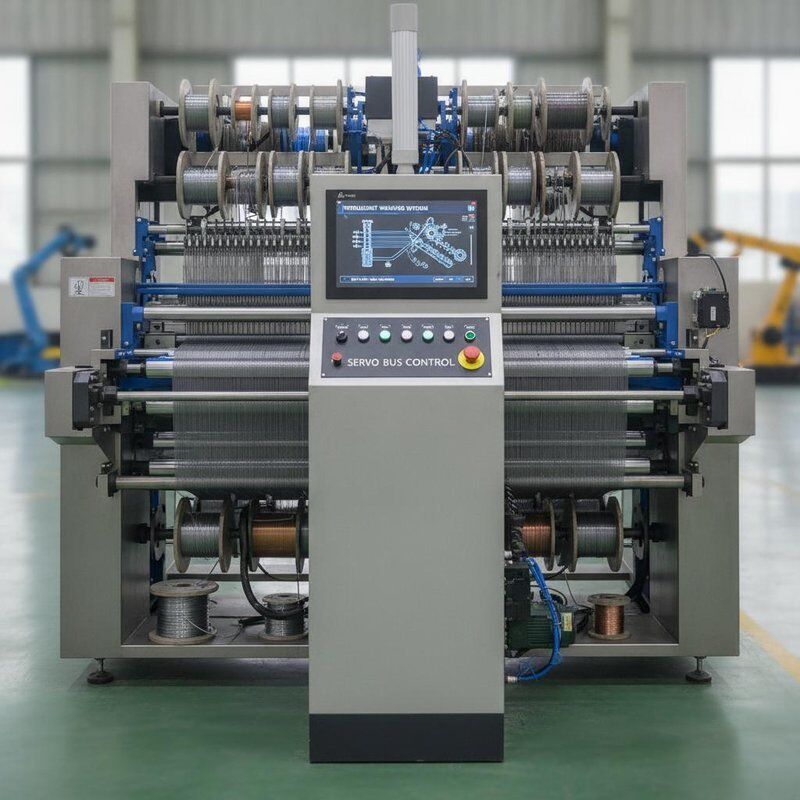

Intelligent CNC Wire Mesh Loom Machine with Servo Bus System

1. Wire Mesh Loom Machine Introduction

We specialize in high-end medium-width ultra-fine precision wire mesh weaving equipment, with AG130D medium-wide high-density fine mesh loom as our flagship premium model. With over 40 years of manufacturing experience, we provide high-precision, stable, tailor-made AG130D looms, full professional fine-mesh technical support, complete original spare parts and full-cycle premium after-sales service targeting manufacturers of medium-size medical, electronic and environmental precision filter mesh.

2. Advanced Wire Mesh Loom Solutions & Core Technologies

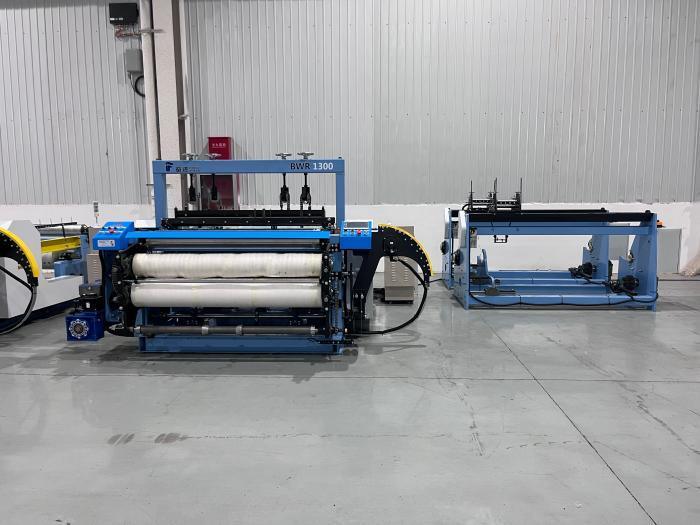

The AG130D is a top-tier fully automatic medium-width ultra-fine wire mesh loom featuring 1300 mm effective working width. It adapts to ultra-fine stainless steel, nickel alloy, titanium and platinum wires, supporting plain, twill and heavy dense Dutch weave. It is specially engineered for mass production of medium-width, high-mesh-count, ultra-tight micro-filtration mesh, applicable to medium-size semiconductor shielding mesh, medical standard filter materials, environmental industrial filter panels and precision aerospace separation mesh.

1)Next-Generation EtherCAT Intelligent Bus System

Unlike the cost-oriented standard control system on AG130B general looms, AG130D adopts upgraded high-response high-torque EtherCAT multi-axis bus control, replacing lagging traditional pulse drive. It delivers micron-grade full-width synchronization across the 1300mm frame, fundamentally resolving wide ultra-fine weaving issues including edge wire breakage, warp drift and uneven lateral tension, maintaining steady low-speed precision operation and drastically cutting high-cost fine wire waste rate.

2)Precision Mechatronic CNC Wire Mesh Loom Platform

All core procedures of AG130D — medium-width sword belt micro feeding, full-width micro constant warp tension, fine weaving forming and automatic winding — adopt closed-loop full digital CNC control. Custom medium-span micro-tension system eliminates edge wrinkles and guarantees identical tiny apertures over the entire mesh width. Fitted with lightweight balanced precision beating structure to avoid thin wire snapping, producing flat, compact and defect-free medium-size fine mesh.

3)Smart Automated Manufacturing for High-Quality Fine Mesh

AG130D integrates fully automatic weaving, real-time full-width micro tension self-adjustment and neat rolling system. The whole machine uses thickened wear-resistant low-friction transmission parts with fewer consumable wearing pieces, lowering long-term maintenance expenditure and extending service life. Built-in dedicated remote diagnosis module supports instant online professional guidance to resolve complex medium-width ultra-fine weaving failures without on-site engineers.

4)High-End Customized Production Equipment Solutions

We offer exclusive premium configuration upgrades for AG130D based on customers’ ultra-fine wire diameter, super-high mesh number, cleanroom production standards and special processing demands, providing exclusive flexible production solutions for medium-format high-precision ultra-fine metal mesh.

5)Complete OEM, Sample Weaving & Product Verification Service

We supply on-site AG130D machine test run, medium-size ultra-fine mesh trial weaving and OEM customization service. Customers can verify filtering precision, flatness and shielding performance before mass production to eliminate risks of high-precision production line investment.

6)Professional Ultra-Fine Medium-Width Mesh Training & After-sales Service

We deliver full on-site operational training focused on medium-width ultra-fine wire weaving for novice teams. For orders of 10 AG130D units and above, free on-site installation, commissioning and high-precision weaving technical training will be completed within one week (no labor fees, only necessary translation and actual miscellaneous expenses).

Key Highlights in One Sentence

AG130D 1300mm medium-width ultra-fine precision mesh loom, differentiated from economical AG130B by exclusive upgraded medium-span high-sensitivity EtherCAT micron-level bus control, fully automatic, ultra-low fine wire scrap rate, consistent flawless medium-size mesh quality, high-end customizable configurations, equipped with dedicated medium-width fine mesh trial weaving, remote intelligent troubleshooting and full premium technical after-sales support.
