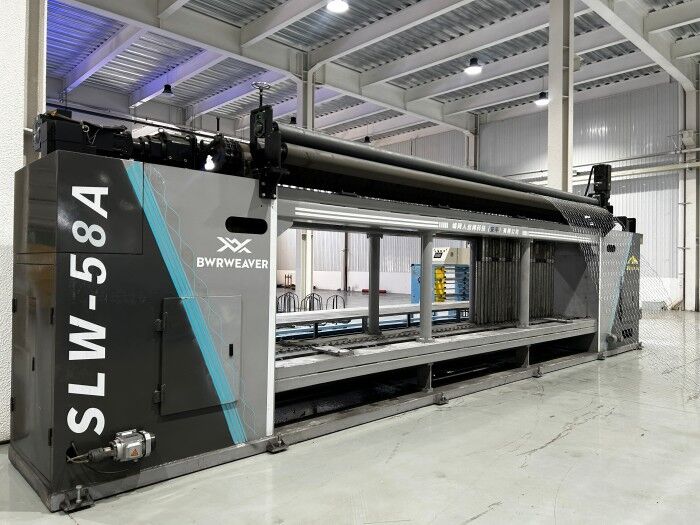

SLW‑58A CNC Gabion Mesh Weaving Machine, 5‑Axis Linkage
| Place of Origin | CHIAN |
| Brand Name | APBWR |
| Certification | ISO9001 |
| Model Number | SLW-58A |
5-axis CNC gabion mesh machine
,CNC gabion weaving machine
,gabion box machine with warranty
1. Product Introduction
The SLW58A Full CNC Gabion Mesh Production Line is designed for efficient and stable production of high-quality gabion mesh. Equipped with advanced servo-driven control, PLC and HMI operation, plus customizable in-house software, it achieves precise weaving, high output and reliable performance. The finished gabion mesh fits projects of slope protection, river training, retaining structures, road engineering and ecological restoration.
2. 5 Core Advantages
- 5-Axis Linkage (Patented Technology) Unique 5-axis linkage design ensures high precision, stable movement and long service life.
- Remote Diagnosis & Maintenance Real-time monitoring and remote support minimize downtime and improve production efficiency.
- Customized PLC + HMI Control User-friendly touch screen, adjustable parameters, custom logic, multi-language and production reports available.
- High Output & Stable Production Servo-driven system supports high-speed weaving, consistent mesh quality and reliable running performance.
- Complete Production Line Solution One-stop solution covering wire feeding, mesh cutting, packing, together with installation support.
3. Applications
- Slope Protection: Hillside & embankment stabilization
- River Training: Riverbank protection
- Road Engineering: Roadside retaining & reinforcement
- Ecological Restoration: Erosion control & landscape protection
4. Technical Specifications
| Item | Specification |
|---|---|
| Machine Model | SLW-58A |
| Machine Name | 5-Axis Linkage Gabion Mesh Weaving Machine |
| Mesh Size | 60×80/80×100/100×120mm, adjustable |
| Max Netting Width | 5.4 m |
| Twist Length | 40-70 mm, adjustable by HMI |
| Twist Count | Triple twist / Five twist / Long / Short twist |
| Max Galvanized Wire Diameter | 4 mm |
| Servo Qty / Power | 5 sets, 15 kW each |
| Motor Brand | HCFA |
| Control System | XINJE PLC + HMI |
| Software | In-house developed, customizable |
| Dimensions | 9.8 m × 1.32 m × 3.46 m |
| Weight | 19.5 T |
| Voltage | 380 V |
| Max Output | 1000+ m²/hour |
| Standard Included | Auto lubrication, take-up shaft, warping machine |
5. Production Line Equipment List
- Five-Roller Unit
- CNC Spring Making Machine
- CNC Gabion Mesh Machine
- CNC Bending Machine
- CNC Shrinking & Rolling Machine
- CNC Mesh Cutting Machine
- CNC Wire Straightening Machine
6.Customer Application Scenarios
|
SLW-54A Gabion Mesh Machine loaded on truck. Factory delivery, ready for long-distance transportation to client’s factory. |
SLW Series Gabion Machine packed with protective film. Forklift loading for container shipment, ready for overseas delivery |
|
SLW-54A Heavy Duty Gabion Mesh Weaving Machine. High-speed production of hexagonal wire netting, widely used in slope protection and erosion control. |
SLW-54C Gabion Mesh Machine, running in workshop. It continuously twists hexagonal wire mesh with stable weaving, for gabion box and river protection projects. |
