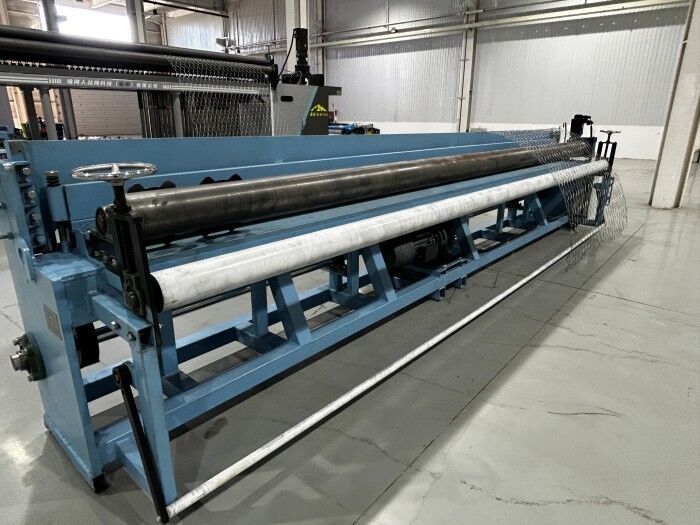

Gabion Box Machine SLW58A, Full CNC 5-Axis Linkage Gabion Mesh Weaving Equipment

  1.General Introduction of Gabion Production Line

The full‑automatic CNC Gabion Production Line is an integrated industrial solution dedicated to manufacturing high‑quality double‑twist hexagonal gabion mesh and finished gabion boxes. This Gabion Production Line combines weaving, edge processing, cutting, bending and packing procedures into one complete workflow, eliminating frequent manual intervention. Built for medium‑to‑large mesh factories, the Gabion Production Line realizes continuous mass production, helping manufacturers obtain stable‑quality gabion products and lower overall labour costs.

  2.Core Configuration of the Gabion Production Line

Every complete Gabion Production Line consists of multiple core CNC units to finish the whole gabion fabrication process. The Gabion Production Line includes the main gabion weaving host, CNC spring making machine, CNC wire straightening machine, CNC curling machine, CNC cutting machine, gabion bending machine and hydraulic packing machine. Standard configurations cover auto‑lubrication system and auto‑pause protection. Each workstation of the Gabion Production Line matches perfectly in running speed, ensuring smooth material transfer from wire feeding to final packed mesh rolls.

  3.Key Technical Strengths of Gabion Production Line

Adopting 5‑axis linkage servo control and XINJE PLC+HMI touch‑screen operation, this Gabion Production Line supports flexible parameter adjustment for mesh opening, twist style and twist length. The Gabion Production Line handles wire diameter from 1.5mm‑4.5mm with standard weaving width up to 5400mm. It is equipped with remote diagnosis function, allowing real‑time running‑status monitoring. Thanks to optimized mechanical structure, the Gabion Production Line delivers stable spindle speed at 80 times per minute and effective linear output up to 360 meters per hour, while greatly reducing unexpected shutdown risks.

  4.Production Outputs from Gabion Production Line

All hexagonal gabion mesh and gabion box semi‑finished goods are produced by this Gabion Production Line. Mesh specifications can be switched among multiple standard sizes, and non‑special mesh sizes are available upon custom request. Products turned out by the Gabion Production Line feature neat twisting, uniform mesh aperture and strong anti‑tearing performance. The finished mesh can be further processed into gabion boxes, gabion mattresses for various infrastructure orders. Consistent product quality from the Gabion Production Line helps suppliers meet strict requirements from international engineering buyers.

  5.Application Fields for Products Made by Gabion Production Line

Gabion goods manufactured from the Gabion Production Line are widely adopted across hydraulic and civil construction sectors. Mesh output by the Gabion Production Line is applied in river training, embankment anti‑erosion, slope stabilization, retaining wall construction, highway and railway protection, as well as ecological restoration projects. With good flexibility and water permeability, gabion products from the Gabion Production Line serve as eco‑friendly substitutes for rigid concrete structures, well‑adapted to ground settlement and native plant regrowth.

  6.Turn‑key Service & Support for Gabion Production Line

We provide full turn‑key technical service for every set of Gabion Production Line. Our scope covers factory layout suggestion, equipment production, loading guidance, on‑site installation and commissioning for the Gabion Production Line. Operator training is included to help your team master daily parameter setting and routine maintenance. Supported by remote troubleshooting, the Gabion Production Line can get rapid technical assistance even for overseas customers. If you plan to expand gabion manufacturing capacity, this automated Gabion Production Line will be your reliable long‑term investment.
