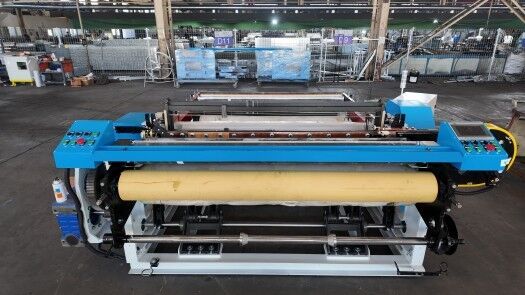

AG1600B Wire Mesh Weaving Machine with Continuous Take Up Options

  1.Anping Weaver Wire Mesh Weaving Machine Automation Solutions

We design equipment around the way customers manufacture and handle wire cloth. Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD, located in Anping, China, supplies the AG160B Wire Mesh Weaving Machine for 1600 mm weaving with configurable collection arrangements and supporting technical documentation.

  2.Wire Mesh Weaving Machine Cloth Collection Features

Continuous removal and direct winding are the take-up methods listed in the B-type profile. The machine includes a cloth rolling servo system, automatic feeding and tension control. PLC coordination links these functions with weaving, while the touchscreen provides operating information and parameter access.

  3.Wire Mesh Weaving Machine Advantages in Production Flow

Selecting the right take-up arrangement helps match weaving to how the factory handles finished fabric. Automated collection supports an organized material flow during the run. Available options such as an additional warp beam or wire accumulator stand can be discussed as part of a confirmed equipment package.

  4.Wire Mesh Weaving Machine Applications for Roll Supply

AG1600B can serve manufacturers supplying stainless steel filtering cloth and other industrial woven wire products in roll form. The listed weave families are plain, twill and Dutch. Customers should define the collection method, finished fabric requirements and downstream handling needs when discussing the production setup.

  5.Wire Mesh Weaving Machine Take Up Specifications

The weaving format is 1600 mm, with wire listed at 0.017-0.14 mm. Plain/twill range is 40-635 mesh/inch; Dutch range is 325-2300 mesh/inch. Four frames and a maximum 120 RPM rating are specified. Roll dimensions and permissible winding settings need separate confirmation for the chosen product.

  6.Wire Mesh Weaving Machine Feeding and Collection Principle

The machine supplies warp to the weaving zone while weft insertion forms the cloth. The take-up system removes the fabric in coordination with the weaving cycle. Managing the relationship between incoming wire and outgoing cloth helps maintain the selected production conditions as the fabric accumulates.

  7.Wire Mesh Weaving Machine Production and Collection Process

Choose the take-up method before setting up the order. Prepare the warp, thread the machine and establish the collection path. Check the trial fabric and winding condition before releasing the run. After production, handle and inspect the finished roll in accordance with the factory's approved procedure.

  8.Wire Mesh Weaving Machine Operation for Take Up Monitoring

Use the manual to set the collection arrangement and ensure the wire path is unobstructed. Start with approved parameters and controlled trial operation. Observe how the cloth exits the weaving zone and enters the take-up system, responding to faults through the prescribed stop and troubleshooting sequence.

  9.Wire Mesh Weaving Machine Precautions Around Winding

Never reach toward a moving roll or try to correct winding by hand during operation. Secure the machine against unexpected movement before intervention. Confirm the selected take-up mode in the supply contract, and keep any optional accessories distinct from the standard package when planning installation.

  10.Wire Mesh Weaving Machine Customer Production Sites

These customer-site photographs show Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD equipment used for stainless steel and copper mesh weaving. The images present workshop arrangements, woven mesh and equipment setup at customer facilities.
