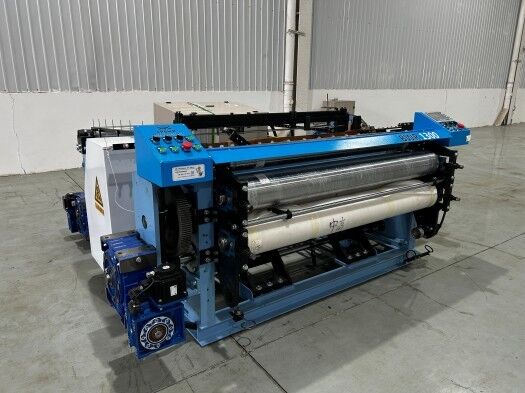

AG1300B Multi Material Wire Weaving Mesh Machine for Metal Fabrics

  1. Wire Weaving Mesh Material Selection

Different metal fabrics begin with different wire characteristics. The AG1300B Wire Weaving Mesh machine accommodates stainless steel, copper, aluminum, nickel, titanium and tungsten, providing a platform for manufacturers developing wire cloth products for a variety of industrial requirements.

  2. Wire Weaving Mesh Fabric Construction

With plain, twill and Dutch weaving capabilities, the machine supports multiple fabric structures within the B series specification. Wire Weaving Mesh producers can match the construction to their product design while retaining the same PLC controlled equipment platform.

  3. Wire Weaving Mesh Working Dimensions

1300 mm working width defines the AG1300B configuration. The specified Wire Weaving Mesh processing envelope includes 0.017–0.14 mm wire, 40–635 mesh per inch for plain or twill weaving, and a listed Dutch weave range of 325–2300 mesh per inch.

  4. Wire Weaving Mesh Tension Management

Wire material and fabric structure both influence the required tension setting. The Wire Weaving Mesh specification lists load cell and mechanical tension control arrangements, supported by servo driven warp feeding and take-up. The appropriate configuration should be selected for the intended production task.

  5. Wire Weaving Mesh Industrial Uses

The AG1300B can be considered for stainless steel filter mesh, fine metal filtration fabrics and general industrial wire cloth. For specialized Wire Weaving Mesh applications in energy, chemical or aerospace industries, the finished fabric specification should guide machine configuration and trial production.

  6. Wire Weaving Mesh Supplier Capabilities

Located in China's Anping wire mesh manufacturing center, Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD focuses on intelligent weaving machinery. Its Wire Weaving Mesh offering combines established mechanical manufacturing experience with automation engineering and customization according to customer requirements.

  7. Wire Weaving Mesh Project Preparation

Before ordering, customers can provide the target material, wire diameter, mesh construction and finished width. These details establish the basis for Wire Weaving Mesh equipment selection, optional accessories and pre-shipment trials, helping align the machine configuration with the intended product.

  8.Customer Applications
