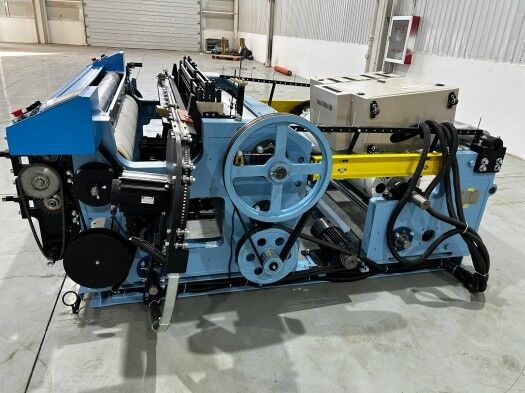

AG1300B Precision Wire Weaving Mesh Machine with PLC Control

  1. Wire Weaving Mesh Structural Foundation

The AG1300B uses a two-piece machine structure with a heavy-duty welded steel frame, cast iron wall plates and an H-section steel welded bottom beam. These components provide the mechanical foundation for automatic Wire Weaving Mesh production across a 1300 mm working width.

  2. Wire Weaving Mesh Roller Engineering

Hard chrome coated roller surfaces, industrial grade bearings and dynamic balancing are included in the B series mechanical specification. Together with the take-up system, these elements support controlled mesh handling within the Wire Weaving Mesh production process.

  3. Wire Weaving Mesh Operator Interface

The touchscreen places machine settings and operating information at the operator's workstation. Chinese and English interface options, parameter adjustment and running status monitoring help users manage daily Wire Weaving Mesh tasks and identify operating conditions requiring attention.

  4. Wire Weaving Mesh Production Capability

The AG1300B is specified for fine wires from 0.017 to 0.14 mm and supports plain, twill and Dutch structures. Its Wire Weaving Mesh system combines automatic feeding, servo control and winding, with a maximum machine speed of 120 RPM under suitable operating conditions.

  5. Wire Weaving Mesh Protective Functions

Emergency stop, overload protection, leakage protection, limit protection and servo alarm protection are included. Fault recording gives maintenance personnel a reference when checking Wire Weaving Mesh interruptions, while safety labels identify relevant equipment hazards.

  6. Wire Weaving Mesh Commissioning and Maintenance

The supplied operation manual, electrical drawings, maintenance manual and spare parts list provide practical references for equipment use. Wire Weaving Mesh installation requires an appropriate industrial floor, a dry and ventilated environment, and electrical preparation matching the confirmed machine configuration.

  7. Wire Weaving Mesh Manufacturing Partner

Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD supplies the AG1300B with installation guidance, online support and long-term spare parts availability. Based on over four decades of machinery experience, the company focuses on reliable Wire Weaving Mesh production systems and customer-specific automation.

  8.Customer Applications
