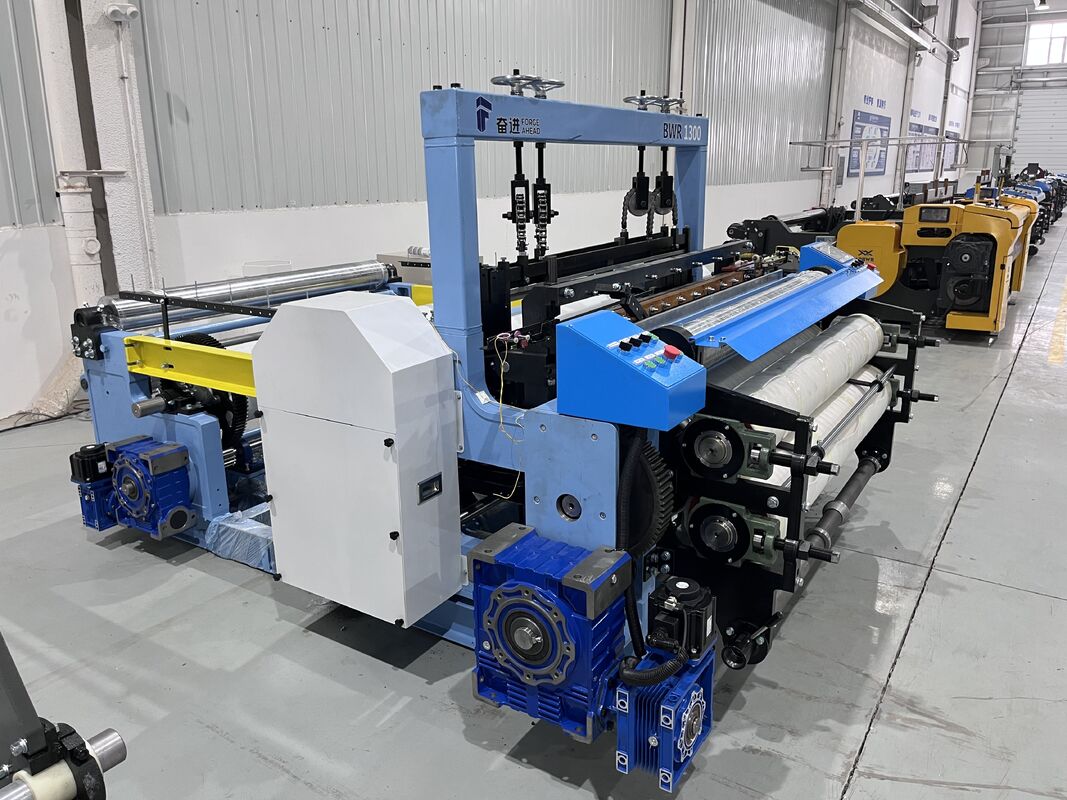

1.3m Light Duty Automatic Wire Mesh Machine Fully Automatic CNC Controlled
|
1.3m Light Duty Automatic Wire Mesh Machine Fully Automatic CNC Controlled
| Place of Origin | CHINA |
| Brand Name | APBWR |
| Certification | ISO9001 |
| Model Number | 1300D |
Product Details
Material:
Steel
Tension Control:
Numerical Control
Keywords:
Wire Mesh Weaving Machine
Weaving Diameter:
0.05-0.45
Key Word:
Aluminum Wire Mesh Weaving Loom 2700MM
Feeding:
Yarn From Coil Automatic
Weaving Speed:
60-120(times/ Min)
Body Weight:
4.16tons
Base Size:
3070mm⁺2913mm*1720mm
Highlight:
1.3m automatic wire mesh machine
,CNC controlled wire weaving machine
,light duty automatic mesh weaver
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
$5000-50000
Packaging Details
Pallets or wooden crates as per customer's requirements.
Delivery Time
14-21Days
Payment Terms
L/C,T/T
Supply Ability
1000+ /year
Product Description
The BWR 1300 metal wire mesh weaving machine is a high-performance, servo-controlled industrial equipment engineered for manufacturing precision metal wire meshes. It is widely used in filtration, construction, security fencing, and industrial screening applications.
Key Components:
The machine features a robust frame, automatic warp feeding system, servo-driven shedding mechanism, high-speed weft insertion unit, precision beating-up assembly, tension control system, PLC touchscreen control panel, and automatic take-up rollers. The servo system ensures precise control over mesh density and aperture size, while the tension control unit maintains consistent wire feeding to prevent breakage.
Workflow:
Raw metal wires are unwound and fed into the warp feeding system, which straightens and tensions the wires. The servo-driven shedding mechanism lifts the warp wires to form a shed, allowing the weft insertion system to pass the weft wire through at high speed. The beating-up mechanism then presses the weft into place, forming uniform mesh. The finished mesh is continuously wound onto the take-up rollers for collection.
Advantages:
- High Precision & Versatility: The servo-driven design enables precise control over mesh aperture and density, supporting production of various wire diameters and mesh specifications.
- High Efficiency & Stability: The automated workflow delivers stable, high-speed production, minimizing downtime and improving output consistency.
- User-Friendly Operation: The PLC touchscreen allows for quick parameter adjustments and easy monitoring, reducing setup time and labor costs.
- Durability & Low Maintenance: Built with heavy-duty components, the machine ensures long-term reliable operation with minimal maintenance requirements.
