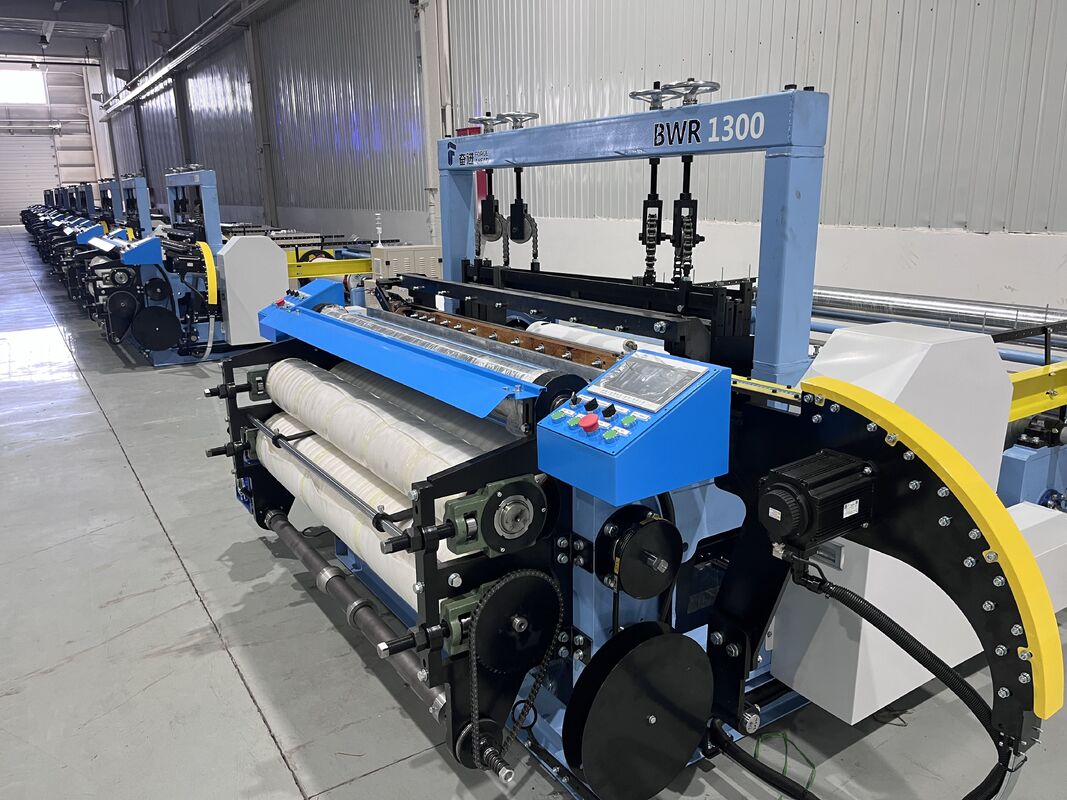

Fully Automatic High Precision Wire Mesh Weaving Machine For Stable Operation

A wire mesh weaving machine is a high‑precision industrial equipment used to weave metal and alloy wires into uniform mesh products. It features multiple weaving widths (1300/1600/2000/2500mm), stable structure, cast wallboards, and channel‑steel frames for high rigidity.

Advantages

It offers high efficiency, stable operation, low energy consumption, and strong adaptability. With servo control and PLC systems, it ensures high precision, consistent mesh quality, and easy parameter adjustment. It supports long‑time running and low maintenance.

Applications

It is widely used in filtration, screening, electronics, printing, construction, and aerospace industries, producing filter meshes, screen printing plates, safety nets, and industrial sieves.

Technology & Principle

The machine adopts shedding, beating, rapier weft insertion, automatic let‑off, and constant‑tension take‑up systems. It interweaves warp and weft wires through precise mechanical and electrical coordination to form standard mesh.

Production Process

Wire preparation → warp feeding → tension control → shedding → weft insertion → beating → cloth take‑up → winding → finished mesh.

Operation Method

Set parameters on the HMI touch screen, start the motor, adjust tension and speed, monitor running status, and switch recipes with one click.

Notes

Regularly lubricate parts, check rapier and heald frames, avoid overload, keep wires clean, ensure stable voltage, and conduct daily inspections to prevent wear and breakage.
