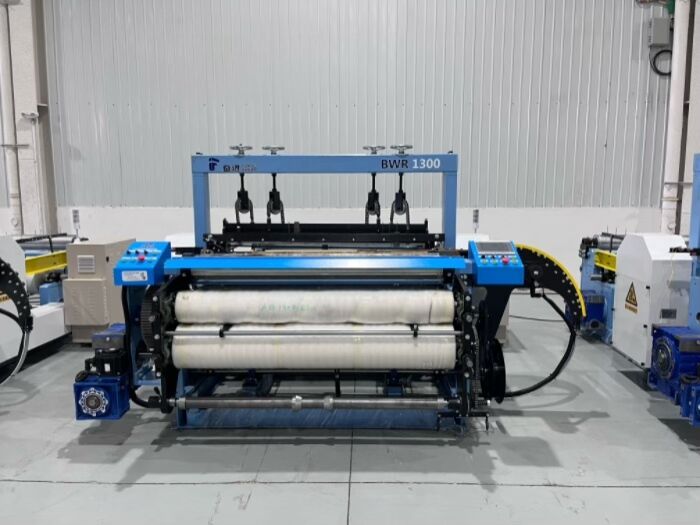

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine
  • Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine
  • Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine
  • Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine
  • Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine

Place of Origin China
Brand Name APBWR
Certification ISO9001
Model Number 1300D
Product Details
Weaving MeshRange:
Square Meth/Dutch Mesh
Weaving Method:
Plain Weave/ Twill Weave/ Dutch Weave
Body Weight:
3.78T
Maximum Mesh Width:
1300 Mm
Diameter Range:
0.05mm-0.6mm
Weaving Speed:
60-120 Times/min
Highlight:

Wire Mesh Weaving Machine 130D

,

Intelligent Remote Diagnostic Weaving Machine

,

Wire Mesh Weaving Machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
5000$-50000$
Packaging Details
Pallets or wooden crates as per customer's requirements.
Delivery Time
45 working days
Payment Terms
L/C,T/T
Supply Ability
1000+ /year
Product Description

  1.  Company Introduction


  About Us

We specialize in intelligent wire mesh machinery and automated supporting solutions, covering a full range of wire mesh production equipment. With over 40 years of manufacturing experience, we offer stable, efficient and customizable machines. We also provide professional technical support, complete spare parts supply and reliable after-sales services.


   2. 130DB Wire Mesh Weaving Machine Core Advantages & Selling Points


The AG130DB is a fully automatic wire mesh weaving machine with a 1300 mm effective working width. It is suitable for plain, twill and Dutch weaving of stainless steel wire, copper wire, aluminum wire, nickel wire, tungsten wire, titanium wire and other metal wires. Designed for continuous mass production of high-mesh, high-density ultra-fine metal wire mesh, it matches the production demand of precision filter mesh, micro industrial screening mesh and high-standard special metal mesh materials.

  1.Exclusive EtherCAT Bus Control (Unique in the Market)

Adopts upgraded EtherCAT multi-axis bus control system replacing traditional pulse drive. Achieves ultra-precise synchronous linkage of all axes during fine mesh weaving, effectively avoids belt slipping and equipment jamming, maintains long-term stable high-speed operation, and significantly cuts overall failure frequency.

  2. Full CNC & Mechatronic Integrated Design

Sword belt feeding, warp constant tension adjustment, weaving forming and finished mesh rolling are all digitally controlled independently. Real-time constant tension control delivers smoother mesh surface, more consistent aperture and more steady weaving precision for fine wire products. It is fitted with optimized reinforced beating mechanism to make mesh structure tighter, flatter and neater.

  3.Highly Automatic & Intelligent Operation

Equipped with full-automatic weaving, intelligent tension self-calibration and synchronous winding system. Optimized internal mechanical structure reduces vulnerable wearing parts, slashes daily maintenance costs and extends the whole machine service life. It supports online remote fault diagnosis and real-time remote technical guidance, realizing quick fault removal without field engineers.


  4.Strong Customization Capability


We offer targeted personalized modification and parameter customization based on customers’ wire diameter, mesh count, weaving density and diverse production standards, providing flexible exclusive solutions for all kinds of fine-spec metal mesh products.

  5.Complete Trial & Processing Service

Provide on-site machine running test, fine mesh trial weaving and OEM processing service. Clients can fully inspect weaving precision and finished mesh quality before mass production, realizing zero-risk order cooperation.

  6.Professional Training & After-sales Service

We supply full-process on-site operation and parameter debugging training for novice production teams. For bulk orders of 10 units and above, free on-site installation, commissioning and systematic technical training will be arranged within one week (labor service free of charge, only translation fees and actual travel expenses need to be borne).

  Key Highlights in One Sentence

Upgraded EtherCAT bus-controlled fine mesh loom of 1300mm width in the market, full-automatic intelligent operation, ultra-low failure rate, stable high-precision fine mesh weaving effect, fully customizable, equipped with complete trial weaving service, remote online technical support and all-round professional after-sales guarantee.

  3.Typical Applications & On-site Cases

This machine is specially developed for producing fine stainless steel mesh, copper filter mesh, nickel mesh, titanium mesh and other high-density special metal wire mesh. The following pictures display the actual running state of same-series 130DB machines at customers’ workshops, allowing buyers to clearly learn about workshop operating environment, standard operation procedures and finished fine mesh presentation effect.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 0









Copper mesh weaving site: Shows continuous copper mesh weaving, suitable for conductive, shielding and filtration applications.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 1








Copper mesh weaving detail: Shows stable mesh forming and the copper wire weaving/output condition.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 2







Stainless steel mesh production site: Suitable for continuous production of precision filter mesh and industrial screening mesh.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 3







India customer factory training case: Supports customer factory training, pre-shipment inspection, trial running and process communication.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 4









These pictures show the customer's large workshop. Multiple mesh looms are running steadily for mass industrial production.

Wire Mesh Weaving Machine 130D Intelligent Remote Diagnostic Weaving Machine 5









These are on-site photos of our wire mesh looms put into formal production at the customer’s factory.



  4.Warranty & After-sales Service



Item

/Specification / Description

Delivery Time

25Standard delivery time is 25 working days. The exact delivery schedule is subject to order configuration, production schedule and contract terms.

/Factory Acceptance / Inspection

Customers are welcome to visit the factory for pre-shipment inspection and trial running, confirming machine status, target process and finished mesh surface.

Customer Training

Free factory training is available, covering basic operation, common specification changeover, routine maintenance, troubleshooting and process parameter communication.

Overseas Installation & Commissioning

According to order quantity and project requirements, engineer on-site installation and commissioning service can be provided. Service scope, duration and cost arrangement are subject to the contract.

Online Support

If customers cannot visit the site, video guidance, online installation/commissioning support and operation training can be provided. Electrical parts can be remotely assisted.

After-sales Service Commitment

Long-term technical support and spare parts service are available. Warranty period, response method, spare parts list and service standards are subject to the final contract.



  5. Business Contact



/ Website

www.machine-gabion.com

/ Email

admin@machine-gabion.com

/ WhatsApp / Tel / WhatsApp

+86 13623378003

AG130D Please provide target mesh samples, wire diameter, mesh count, material and capacity requirements so that we can recommend suitable AG130B configuration and process solutions.
