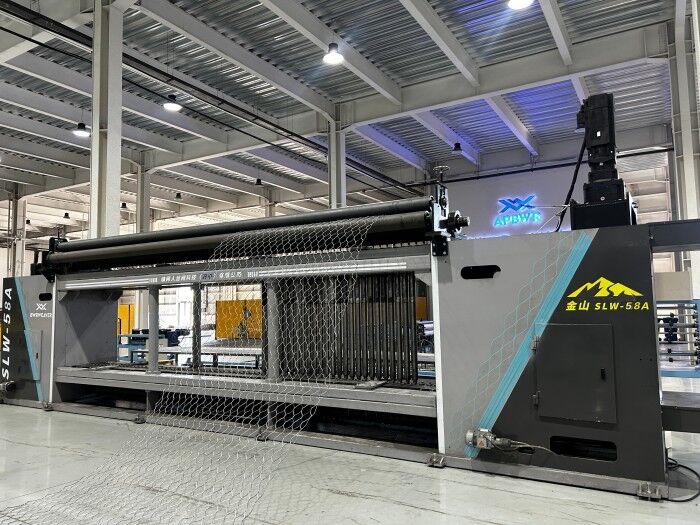

SLW‑58A 5‑Axis Linkage CNC Gabion Mesh Weaving Machine

  1. Product Introduction

SLW‑58A 5‑axis linkage gabion mesh weaving main machine focuses on high‑speed forming of hexagonal gabion mesh sheets. It produces blank sheets both for gabion boxes and slope‑protection mesh rolls. As the core of gabion processing workstation, it adopts self‑developed CNC weaving control system, integrating wire‑in correction, tension feedback and twisting weaving. It can connect with various downstream auxiliary machines to build flexible processing station.

Manufactured by Anping Weaver Wire Mesh Equipment, built on local wire‑mesh industrial heritage with engineering‑grade quality control. Besides standard models, hardware & software adaptation is available for different working conditions. It delivers reliable core weaving equipment for global mesh fabricators, covering hydraulic construction, transportation slope, municipal landscape and soil‑ecology restoration. The main machine can run standalone or combine with auxiliary units to raise plant automation and cut manual work.

  2. Five Core Advantages

1. 5‑Axis Synchronous Servo Coordination System Five‑set synchronous servo drive with real‑time motion compensation, less mechanical impact, uniform twisting angle and high mesh consistency. It slows wearing of consumable parts and extends service life.
2. Multi‑Dimensional Operation Status Monitoring Real‑time data collection and fault trace‑back records help quick on‑site troubleshooting, reduce unplanned downtime and keep on‑schedule order delivery.
3. Configurable PLC + HMI Human‑machine Interface Visual parameter adjustment on color touch screen. Multi‑language support, customizable production reports & process interlock logic. Lower skill requirement for operators.
4. Strong Continuous‑run Productivity Optimized for two‑shift factory production. Output exceeds 1000㎡ per hour. Stable mesh quality even under long‑hour high‑speed weaving to cut waste from defective goods.
5. Modular Expansion Compatibility Standard reserved interfaces for optional auxiliary units. Factories may expand capacity step‑by‑step instead of full‑set one‑time investment.

  3. Application Scenarios

• Riverbank Project: Mesh sheets for river revetment & flood‑control dike
• Road & Hill Protection: Blank mesh for highway / railway slope stabilization
• Ecological Governance: Mesh for soil erosion control & eco‑grid production
• Landscape Works: Raw sheets for gabion retaining wall & green eco‑projects

  4. Technical Specifications

  5. Optional Compatible Auxiliary Units

1. CNC Five‑Roller Wire Tensioning Unit
2. CNC Spiral Binding Wire Forming Machine
3. CNC Gabion Mesh Fixed‑Length Cutting Machine
4. CNC Gabion Mesh Selvedging Reinforcement Machine
5. CNC Compact Gabion Mesh Winding Machine
6. CNC Hydraulic Gabion Baling Press
7. CNC Wire Straightening & Cutting Machine

  6.Customer Application Scenarios
