Smart Control Heavy Duty Metal Wire Mesh Loom High Durability
| Place of Origin | CHINA |
| Brand Name | APBWR |
| Certification | ISO9001 |
| Model Number | 1600D |
durability wire weaving machine
,durability wire mesh loom machine
,smart control wire weaving machine
Smart Control Heavy Duty Metal Wire Mesh Loom High Durability
1.Smart Control Heavy Duty Metal Wire Mesh Loom High Durability description
The suspended metal weaving machine is a update product of the old metal wire mesh machine. This model has significantly im proved rigidity and strength. The web feeding adopts a pawl mechanism with a larger diameter of the pawl wheel, making it more reliable to use.
2.Smart Control Heavy Duty Metal Wire Mesh Loom High Durability Features
The lifting method is adopted, with a variety of patterns and a large tensile force.
Automatic parking and alarm function for longitude and latitude thread fault.
The heavy duty wire mesh weaving machine is designed to be electro-mechanical integrated, with reliable performance, reasonable design, and easy maintenance.
3. Smart Control Heavy Duty Metal Wire Mesh Loom High Durability Parameters
| Feature Category | Light-duty Loom (Model B) |
Heavy-duty Loom (Model D) |
|
| Mesh Width |
1300MM 1600MM |
1300MM 1600MM |
|
| Harness System | Positive (Overhead) | Negative (Bottom Cam) | |
| Web Romoval Method | Continuous Web Removal or Direct Winding | Continous Web Removal or Direct Winding | |
| Web Diameter Range | Continous Web Removal | 0.01-0.2mm | 0.1-0.6mm |
| Direct Winding | 0.03-0.2mm | 0.1-0.3mm | |
| Mesh Count Range | Plain Weave | 30-500 mesh/inch | 10-100 mesh/inch |
| Twill Weave | 30-635 mesh/inch | 20-100 mesh/inch | |
| Dutch Weave | 100-2300 mesh/inch | 30-500 mesh/inch | |
| Beating Up Frequency | Max.120 r/h | Max. 100 r/h | |
| Motor Power | 2.2 kw | 2.2 kw | |
| Standard Configuration | Crankshaft Type | Bushing Type | |
| Side Frames | Casting Wall Plates | ||
| Tension System | Tension Sensor | ||
| Rapier Head Type | Carbon Fiber | ||
| Drive Type | Fully Digital Control (CNC) | ||

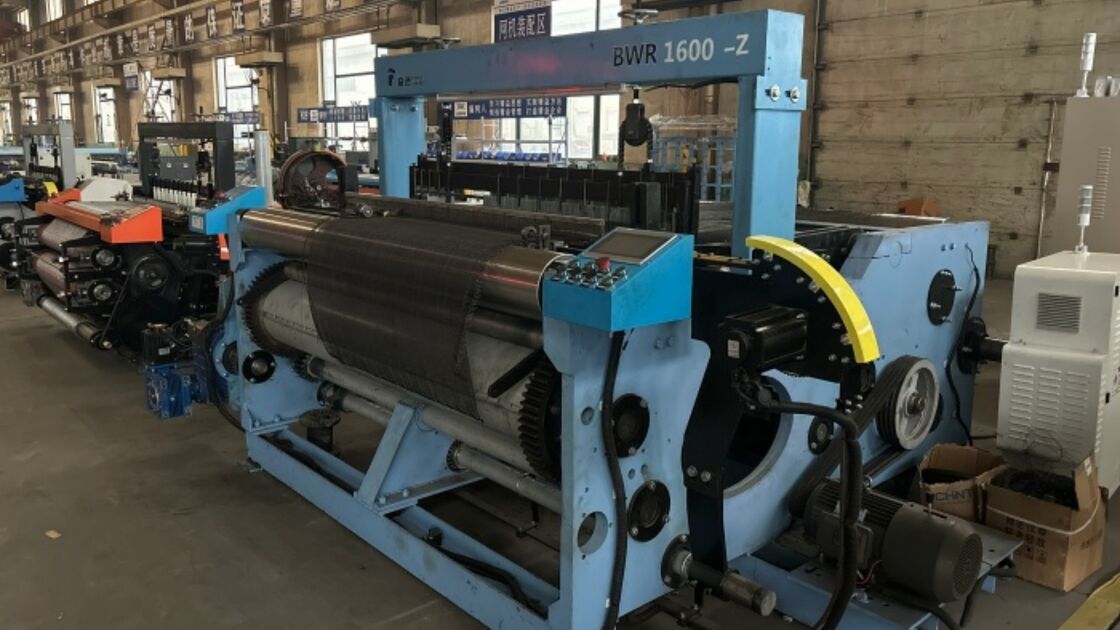

4.Detailed Images
