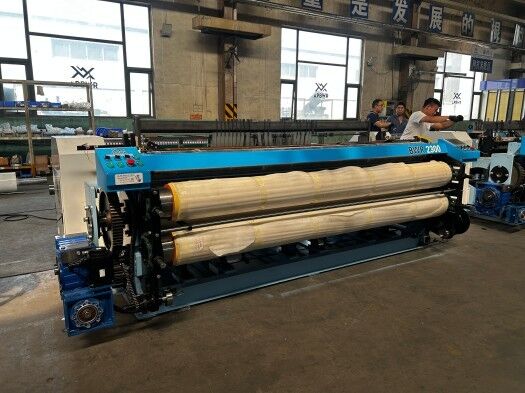

Wire Mesh Weaving Machine AG2300B with Robust Structure and Technical Service

  1.Wire Mesh Weaving Machine Manufacturer and Service Partner

Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD develops equipment with engineering discipline and an automotive-grade quality management philosophy. Based in Anping, we support global mesh manufacturers with customized automation and service. The AG2300B Wire Mesh Weaving Machine combines a 2300 mm width format with B-series weaving capabilities.

  2.Wire Mesh Weaving Machine Mechanical and Operator Features

The Wire Mesh Weaving Machine uses a heavy-duty welded steel frame, cast-iron wall plates, an H-steel welded bottom beam and hard-chromed rollers. Industrial bearings and dynamic balancing are included. PLC and servo integration, a Chinese/English touchscreen and fault displays support the operator's interaction with the mechanical platform.

  3.Wire Mesh Weaving Machine Advantages During Installation and Service

Before shipment, the Wire Mesh Weaving Machine undergoes trial operation and inspection. Installation guidance, online assistance, video support and long-term spare-parts supply are available afterward. Standard documents include operating instructions, electrical drawings, maintenance guidance and a spare-parts list. The specified warranty period is 12 months, subject to agreed coverage.

  4.Wire Mesh Weaving Machine Applications for Industrial Customers

The AG2300B Wire Mesh Weaving Machine is designed for woven metal cloth, including stainless steel filter mesh. Plain, twill and Dutch structures are supported, with several listed metal materials. Finished fabric specifications should reflect the needs of customers in filtration, chemical processing and other relevant industrial supply chains.

  5.Wire Mesh Weaving Machine Technical and Structural Specifications

Effective width is 2300 mm. The Wire Mesh Weaving Machine retains a 0.017-0.14 mm wire range, 40-635 mesh/inch plain/twill range and 325-2300 mesh/inch Dutch range. It has four frames, 7 kW installed power and up to 120 RPM maximum speed. Rubber roller hardness is specified at 85-90 Shore.

  6.Wire Mesh Weaving Machine Principle of Integrated Weaving

The machine structure supports the assemblies that separate the warp, insert weft and collect the resulting fabric. Servo-controlled material handling operates with PLC supervision. Through this repeated sequence, the Wire Mesh Weaving Machine forms a defined fabric organization while coordinating feeding, tension management and roll collection.

  7.Wire Mesh Weaving Machine Production Process Through Acceptance

Machine configuration and installation planning precede warp preparation and trial weaving. The Wire Mesh Weaving Machine produces an assessed sample before the approved order proceeds. Final acceptance follows installation, commissioning and stable operation at the customer site, covering agreed parameters, product quality, protective functions and continuous production performance.

  8.Wire Mesh Weaving Machine Operating Method for Daily Use

Follow the supplied manual to check the Wire Mesh Weaving Machine and prepare its wire path before starting. Enter the approved production values, inspect trial cloth and monitor normal running. Report relevant operating conditions when requesting support, and use the documented fault procedure before returning interrupted equipment to service.

  9.Wire Mesh Weaving Machine Installation and Safety Precautions

Install the Wire Mesh Weaving Machine in a dry, ventilated area with a suitable industrial floor and space based on its confirmed layout. Preserve emergency-stop, overload, leakage, servo-alarm and limit protections. Electrical-cabinet protection is listed as IP20, with IP54 optional. Isolate the equipment before servicing and follow the maintenance documentation.
