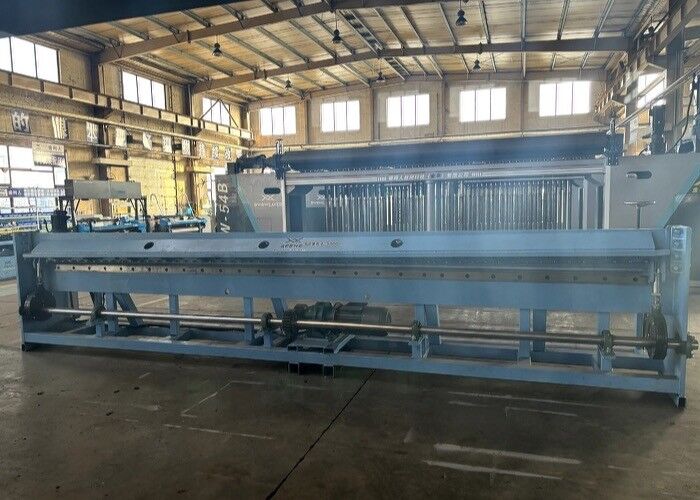

4m CNC Gabion Mesh Cutting Machine
| Place of Origin | CHINA |
| Brand Name | APBWR |
| Certification | ISO9001 |
| Model Number | Golden Scissor-4000 |
4m gabion machine line
,4m gabion production line
,cnc gabion machine line
4M Mesh Cutting Folding Machine
1.Mesh Cutting Folding Machine Components:
1. Rack Section: Heavy-duty steel structure designed for stability and vibration resisitance during high-speed operations.
2.Electrical Cabinet: Equipped with a touchscreen interface for programming and cutting parameters (width, speed, patterns) and monitoring real-time performance.
3.Wire Feeding Mechanism: Automatically uncoils and straightens wires (≤5mm diameter) using motorized rollers.
4.Pressing Mechanism : Hydraulic/pneumatic clamps securing materials during processing. Adjustable clamping force prevents material slippage and ensures burr-free edges.
5.Rolling Mechanism: Speed-synchronized with the cutting unit to maintain continuous production flow.
2. Edge Folding Machine Working Process:
1. Material Loading: Wires or mesh panels are fed into the machine via conveyor or manual placement. .
2. Parameter Setup: Operators input cutting width, speed, and pattern using the CNC interface.
3. Precision Cutting: Laser-guided blades execute cuts within ±0.3mm tolerance, minimizing waste.
4. Quality Check: Integrated sensors verify dimensions and edge quality in real time.
5. Output & Stacking: Finished panels are ejected onto a conveyor for packaging or further processing.
3.Edge Folding Machine Technical Specifications:
Wire Diameter Capacity: ≤5mm
Cutting Width: 4000mm (1m/2m/3m/4m available on request)
Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.
Motor Power: 7.5kw
4. Edge Folding Machine Key Features:
Modular Design: Swap cutting heads and dies in minutes to handle different materials (e.g., stainless steel, PVC-coated wire) and mesh sizes.
Smart CNC System: Auto-adjusts cutting parameters based on material thickness and hardness.
Energy Efficiency: 20% lower power consumption compared to traditional models, with energy-saving servo motors.
Remote Maintenance: Real-time diagnostics and remote troubleshooting minimize downtime.
| Mesh Cutting Folding Machine Parameter Configuration Table | ||
| 1 | Standard weaving width | 4000mm |
| 2 | Wire diameter range | ≤5mm |
| 3 | Production Speed | 10 pieces/min |
| 4 | Motor Power | 7.5kw |
| 5 | Dimensions(L×W×H) | 4950mm*1550mm*1060mm |
| Mesh Cutting Folding Machine Advantages | ||
| 1 | Seamless Coordination with Gabion Machine | Fully synchronized production capability with APBWR's gabion machine. |
| 2 | High Automation | Reduces manual intervention and boosts production efficiency through automated operation. |
| 3 | Precision Cutting | Utilizes CNC technology to gurantee accurate dimensions. |
| 4 | Material Versatility | Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire). |
| 5 | User-Friendly Interface | Intuitive controls enable easy adjustments and quick operation. |
| 6 | Durability | Constructed with premium materials to withstand prolonged heavy-duty use. |
