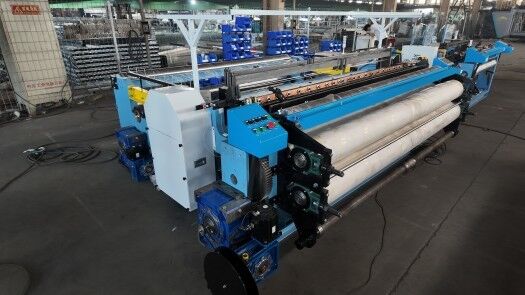

Wire Mesh Weaving Machine AG2500B with Integrated Servo and PLC Control

  1.Wire Mesh Weaving Machine Engineering from Anping Weaver

We manufacture automated metal mesh equipment in Anping under the name Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD. Our engineering-led approach combines machinery experience with customized solutions for global customers. The AG2500B Wire Mesh Weaving Machine brings this control platform to a 2500 mm effective weaving width.

  2.Wire Mesh Weaving Machine Integrated Control Features

The Wire Mesh Weaving Machine uses PLC supervision, servo-driven key functions, bus communication and frequency-inverter control. Warp feeding, cloth rolling and rapier movement have dedicated servo systems. Chinese and English touchscreen interfaces provide parameter access, alarm display, fault recording and running-status monitoring for routine production management.

  3.Wire Mesh Weaving Machine Advantages in Process Coordination

The AG2500B Wire Mesh Weaving Machine links material delivery and collection with the weaving cycle, helping operators manage a defined production setup. Centralized operating information supports communication between production and maintenance teams. Available customization can address selected auxiliary functions, interface requirements and equipment arrangements for the customer's process.

  4.Wire Mesh Weaving Machine Applications for Different Metal Orders

Listed materials for the Wire Mesh Weaving Machine include stainless steel, copper, aluminum, nickel, titanium and tungsten. Producers can consider these materials for filtering cloth and industrial wire fabrics where they fit the order specification. Plain, twill and Dutch structures provide different fabric options within the confirmed machine capability.

  5.Wire Mesh Weaving Machine Electrical and Weaving Technology

AG2500B Wire Mesh Weaving Machine specifications include 2500 mm width, four frames, 0.017-0.14 mm wire and up to 120 RPM. Plain/twill counts are 40-635 mesh/inch; Dutch counts are 325-2300 mesh/inch. The drive package lists a 2.2 kW main motor, HCFA HDV-E600 inverter and 7 kW total installed power.

  6.Wire Mesh Weaving Machine Principle of Controlled Material Movement

Warp delivery releases longitudinal wire as weaving consumes it, while take-up removes the developing fabric. The selected load-cell or mechanical tension arrangement helps regulate this relationship. The Wire Mesh Weaving Machine coordinates weft insertion and these material movements through its integrated electronic control system to form the required cloth pattern.

  7.Wire Mesh Weaving Machine Production Process for Approved Settings

Define wire grade, diameter, mesh count, weave and finished dimensions before preparing the Wire Mesh Weaving Machine. Establish the threading and collection arrangements, then produce a sample for approval. Use the accepted setup during production, observing the output and checking the finished fabric against the customer order.

  8.Wire Mesh Weaving Machine Operating Method for Monitoring

Before starting the Wire Mesh Weaving Machine, verify readiness against the operating instructions and check the selected tension and take-up arrangements. Enter approved HMI values and evaluate the trial fabric. During normal running, review machine messages and cloth condition together, stopping to investigate abnormal operation as instructed.

  9.Wire Mesh Weaving Machine Electrical and Maintenance Precautions

Match the Wire Mesh Weaving Machine to its delivered electrical configuration. The specification lists 380 V +/-10%, three-phase 50/60 Hz, while the installation requirement states 380 V, 50 Hz, three phase; confirm project frequency before installation. Electrical servicing requires trained personnel and safe isolation. Do not bypass alarms or protection devices.
